Shallow Foundation Design for Invercargill Soils: A Practical View

The first thing you see when the rig arrives on a sodden Invercargill lot is the auger biting into silt and peat, pulling up a core that tells you more about the site than any set of plans ever could. Our team works with these cores daily, from the eastern suburbs near the New River Estuary to the sandy ridges further north. Designing a shallow foundation here is not just a bearing capacity exercise; it is a dialogue with the ground. The top few metres often hold organics and soft compressible layers that demand a careful balance between footing width, embedment depth, and reinforcement detailing. Before the concrete goes in, we usually run a CPT test to map the soft zones continuously, and when access is tight for a truck-mounted rig we rely on hand-excavated test pits to confirm the stratigraphy at footing level.

In Southland's soft ground, a well-designed shallow footing is a settlement-control device, not just a bearing element.

Methodology applied in Invercargill

Invercargill sits on Quaternary alluvium and peat swamps: the water table is often less than a metre down, and the undrained shear strength of the near-surface clays can drop sharply after heavy rain. We have measured Cu values below 20 kPa in organic silts just 60 cm below ground level in the Turnbull Thomson Park area. That means a standard 400 mm-wide strip footing placed on undisturbed material can still settle differentially if the subgrade is not properly stiffened. NZS 3404 and the NZGS shallow foundation guidelines push for serviceability checks that go beyond simple bearing capacity, and in our experience that is exactly what saves projects here. We size footings using both Skempton's bearing factors and finite element settlement runs, and when fill is required we apply vibrocompaction to densify imported granular layers before placing the blinding concrete. In low-lying sections near the Oreti River, where flood silts overlay peat, we often specify a stiffened raft edge thickened to 450 mm to bridge soft spots, paired with a grain-size analysis of the subgrade to confirm the fines content stays below 15% under the stone pad.

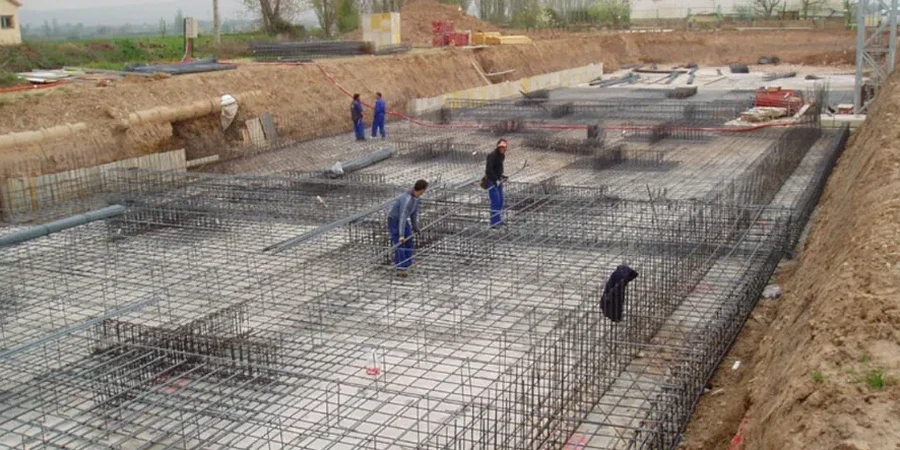

Shallow Foundation Design for Invercargill Soils: A Practical View

Parameter	Typical value
Typical footing embedment depth	450–700 mm below finished ground
Minimum subgrade CBR for strip footings	≥ 3% (undisturbed natural ground)
Allowable bearing pressure (cohesive soils)	50–120 kPa (depending on Cu and FoS)
Maximum total settlement (serviceability)	25 mm per NZGS guideline for residential
Typical raft edge beam width	350–500 mm, reinforced with D12 or D16 cages
Water table depth range	0.5–2.0 m across Invercargill flatlands
Minimum gravel pad thickness under footings	150–300 mm compacted AP40 or AP65

Demonstration video

Local geotechnical conditions in Invercargill

NZS 3604:2011 provides a prescriptive path for residential footings on 'good ground', but in Invercargill the definition of good ground itself becomes the battleground. More than half the sites we investigate contain peat lenses, soft silts, or loose sands that disqualify them from the simplified approach, and that is where NZS 3404 and the NZGS modules on liquefaction and settlement become the governing documents. The real risk is differential settlement across a footprint—one corner of the house sitting on a dense gravel ridge while the opposite edge bears on compressible organic silt. We have seen total settlements under 15 mm when the design includes a properly keyed raft, and over 40 mm when a narrow strip footing was placed on shallow fill without a geotechnical review. Invercargill's seismic hazard is lower than Wellington's, but the soft soil column amplifies long-period motion, so the bearing stratum must be checked for cyclic degradation even under a serviceability-level event.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.co

Applicable standards: NZS 3404:2018 – Steel structures (used for foundation connections), NZS 3604:2011 – Timber-framed buildings (Section 3, foundation ground), NZS 1170.5:2004 – Earthquake actions (liquefaction screening), NZGS Guideline – Module 2: Shallow foundations and settlement, NZGS Guideline – Module 4: Earthquake geotechnical engineering

Our services

Our Invercargill shallow foundation work spans residential, light commercial, and rural structures across Southland. Each package is tailored to the site geology and the contractor's sequencing constraints.

Geotechnical foundation report

Site-specific bearing capacity, settlement analysis, and footing recommendations signed by a CPEng geotechnical engineer. Includes subgrade improvement specs and construction monitoring triggers.

Reactive soil assessment

Shrink-swell testing on cohesive soils to determine site classification per NZS 3604. Critical for the clay-rich tills found on the northern terraces of Invercargill.

Construction phase verification

On-site inspections during excavation and concrete placement. We check bearing stratum consistency, gravel pad compaction, and reinforcement layout against the design report.

Quick answers

How much does a shallow foundation design package cost in Invercargill?

For a typical single-storey residential lot in Invercargill, a full geotechnical investigation with CPT or boreholes and a shallow foundation design report runs between NZ$2,930 and NZ$5,490. The range depends on site access, number of test points, and whether we need to run settlement analysis for peat layers.

Do I need a geotechnical report for a residential footing in Invercargill?

NZS 3604 allows prescriptive footing design only if the ground qualifies as 'good ground'. In Invercargill, the prevalence of peat, soft silts, and high water tables means many sites fall outside that definition. A site-specific report protects you from consent delays and future differential settlement claims.

What is the typical embedment depth for a strip footing here?

We normally set the underside of a strip footing between 450 mm and 700 mm below finished ground level in Invercargill. The exact depth depends on the thickness of the desiccated crust and the depth to the first competent bearing layer we log during the investigation.

Can you design a raft slab on Invercargill's peat soils?

Yes, and we do it regularly. A stiffened raft with edge beams thickened to 400-500 mm can bridge soft peat pockets provided the design accounts for differential settlement. We back the design with settlement modelling and, where needed, specify a compacted gravel raft platform to spread the load uniformly.
